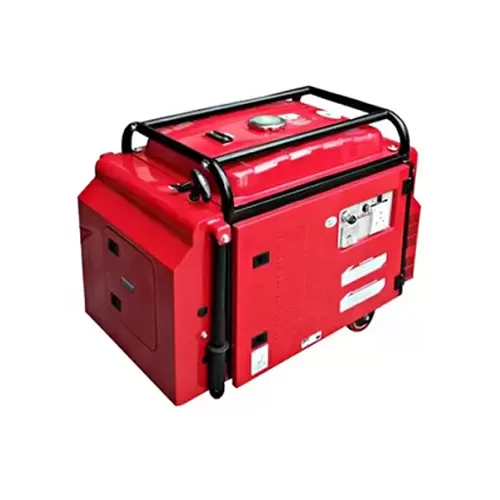

HPM 3KV Silent Petrol Generator Recoil + Self Start & LPG Optional

HPM 3KV Silent Petrol Generator Recoil + Self Start & LPG Optional

Specifications :

• Model Name : GE-3000 Psi
• This is a very Light Weight & Powerful Portable Petrol Generator
• Suitable to run 1 Ton Air Conditioners, Submersible Pump, Deep Freezers, Inductive & Motor Loads
• Pure sine wave & THD<5%, Suitable for sensitive electronic equipment’s
• Ability to withstand high over loading capacity.

Generator

• Max AC. Output :3000
• Rated AC. Output : 2800
• Rated Current Amps :12.5
• NFB Amps :12
• AC. Voltage at Rated Load : 220 Volts ± 10 Volt50 Hz, Single Phase
• AC. Voltage at No Load : 230 Volts ± 5 Volt

Alternator

• Alternator Max : 14 Amps
• Model : HM170P
• Type : OHV25°Inclined,single cylinder, 4 strokes, S.I, Forced air cooling
• Maximum Power :6.5 HP @ 3600
• Bore x Stroke : 70×58 mm
• Displacement :223 cc
• Starting System : Recoil Start+Self Start

Engine

• Fuel :Petrol + LPG (Optional)
• Fuel Tank Capacity :Petrol -20.5 Ltr Fuel
• Lube. Oil Capacity : 600 ml.
• Lubricating Oil Consumption : 2.5 gm./Hr
• Continues Running (With One Filling) :16 Hrs
• Sound level (Db) : (from 1 meter) : <72Db
• Voltmeter : Analogue
• Oil Alert System :Yes

Panel &Other Standard Features

• Fuel Level Gauge :Yes
• Overload Protection (NFB) : Yes
• Costar Wheels : Yes

Size & Weight

• Approx. Weight (KG) : 72 KG (Recoil Start) / 77 KG (Self Start)
• Dimension LxWxH (mm) :780 mm X 520 mm X 610 mm
• Battery Specification : 12 Volt 9 Ah

Description:
3 KVA Genset with simple & rugged design having low Noise, Low maintenance & long life. Gives Regulated and Stable Power. General purpose use for homes, shops, commercial use or field jobs for light loads applications
